Enviornment Sensor

Environment Sensor - Integrating various sensing capabilities into one single IoT sensor

Environment Sensor

Integrating various sensing
capabilities into
one single IoT sensor

Environment Sensor

Omron’s environment sensor is a multi-function sensing component capable of tracking eight different environmental factors which include: temperature, humidity, light, UV index, barometric pressure, noise, acceleration and VOC (Volatile Organic Compounds) with wireless communication functionality in an ultra-small footprint.

Introduction of 2JCIE

Introduction of 2JCIE

3 features of Environment Sensor 2JCIE

  • Convenient

    Combines Bluetooth® low energy technology with different sensing capabilities. Immediately available for your use.

  • Multitask

    Multiple sensing capabilities in one package. Users can choose different locations to sense the surrounding environment.

  • Reliable

    All sensing data is stored in the internal memory of the device. Users can access it at all times without having to worry about loss of data.

Sensor functions

  • Temperature

    Temperature

  • Humidity

    Humidity

  • Light

    Light

  • UV Index

    UV Index

  • Barometric Pressure

    Barometric Pressure

  • Noise

    Noise

  • Acceleration

    Acceleration

  • VOC

    VOC

Product Line up

Choose from three types of sensors based on your needs.

  • USB type

    2JCIE-BU01

    USB type 2JCIE-BU01
    Powered from a USB port, allowing the sensor to run continuously
  • BAG type

    2JCIE-BL01

    BAG type 2JCIE-BL01
    Portable battery-operated type that can be used in your choice of location
  • PCB type

    2JCIE-BL01-P1

    PCB type 2JCIE-BL01-P1
    Embedded type for design optimization

Applications

HOME
home 1
  • Monitoring living spaces
  • Family safety
Living space
home 2
  • Heatstroke prevention
  • For a good night’s sleep
Bed room
  • Temperature

    Temperature

  • Humidity

    Humidity

  • Light

    Light

  • Barometric Pressure

    Barometric Pressure

  • Noise

    Noise

  • Acceleration

    Acceleration

  • VOC

    VOC

OUTSIDE
Outside 1
  • Detection of changes in weather conditions
Outside
Outside 2
  • Heatstroke and UV intensity alert
Outside
  • Temperature

    Temperature

  • Humidity

    Humidity

  • UV Index

    UV Index

  • Barometric Pressure

    Barometric Pressure

  • Noise

    Noise

OFFICE
Office
  • Monitoring office environment
  • Maintaining comfortable workplace environment
Office
  • Temperature

    Temperature

  • Humidity

    Humidity

  • Light

    Light

  • Barometric Pressure

    Barometric Pressure

  • Noise

    Noise

  • Acceleration

    Acceleration

  • VOC

    VOC

FACTORY
Factory
  • Maintaining the quality of factory environment
factory
  • Temperature

    Temperature

  • Humidity

    Humidity

  • Light

    Light

  • Barometric Pressure

    Barometric Pressure

  • Noise

    Noise

  • Acceleration

    Acceleration

  • VOC

    VOC

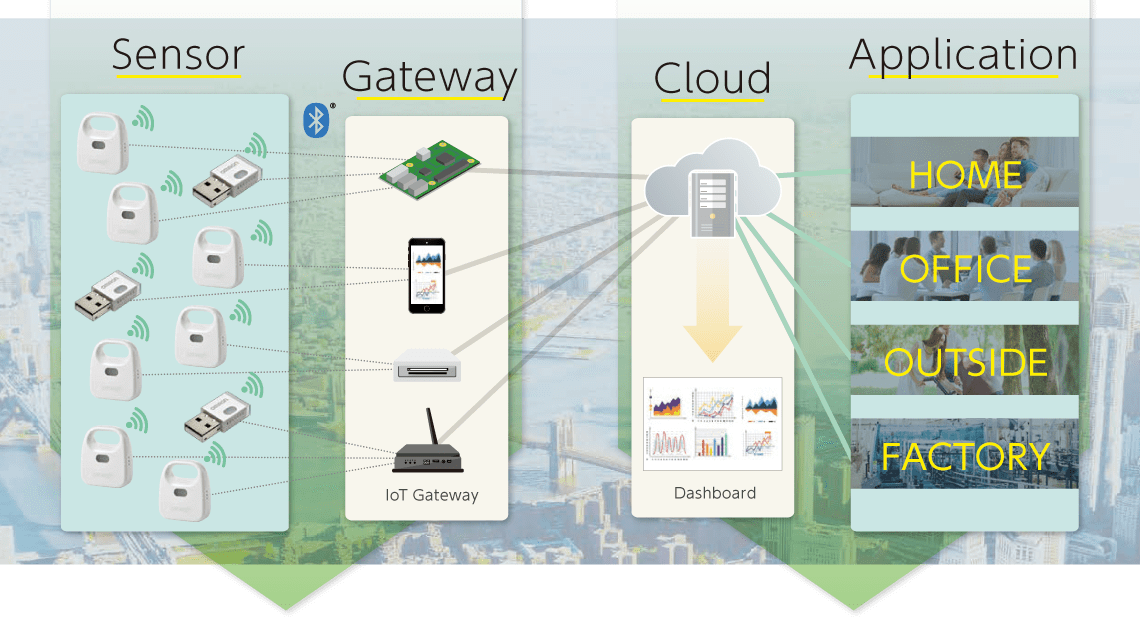

Concept

For greater Simplicity in Connectivity and Sensing in IoT

IoT
  • Sensor beacon mode allows sending of data to IoT gateway devices

    • Beacon transmits environmental data (broadcasting).
    • Users can configure their own applications.
    Sending of data to IoT gateway devices
  • Cloud collaboration accessible on smartphones

    • The amount of data captured on smartphones can be stored in the cloud.
    • Environmental data can be checked from smartphones in remote locations.
    Cloud collaboration

Specifications

Model Appearance Communication interface Output data Minimum packing unit
(Unit: pcs)
2JCIE-BU01 USB type 2JCIE-BU01 Bluetooth®∗1 low energy,
USB communication
Temperature, Humidity, Light, Barometric pressure, Sound noise, 3-axis acceleration∗2, eTVOC∗3, Discomfort index∗4, Heat stroke warning level∗4, Vibration information∗2 (No. of earthquakes, No. of vibrations, SI value∗5) 1
2JCIE-BL01 BAG type 2JCIE-BL01 Bluetooth®∗1 low energy Temperature, Humidity, Light, UV index∗6, Barometric pressure, Sound noise, Discomfort index∗4, Heat stroke warning level∗4 1
2JCIE-BL01-P1 PCB type 2JCIE-BL01 Bluetooth®∗1 low energy Temperature, Humidity, Light, UV index∗6, Barometric pressure, Sound noise, Discomfort index∗4, Heat stroke warning level∗4 1
  • ∗1. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OMRON Corporation is under license.
  • ∗2. 3-axis acceleration values can only be obtained in the specified operation mode. For details, refer to the Communication Interface Manual.
  • ∗3. eTVOC (equivalent Total Volatile Organic Compounds) refers to the total concentration of volatile organic compounds in a room environment. Output TVOC values will be higher or lower depending on the type of volatile organic compound. Also, if continuously operated in high-temperature and high-humidity environments, sensitivity for eTVOC values may decrease.
  • ∗4. Information for heat stroke and discomfort index are only guidelines to be used for air conditioning and physical condition management. An individual difference and physical condition will greatly affect an individual feeling. Sensor output is not to be used for determining the presence of symptoms. Use only as a guideline. Warning levels for heat stroke may not be the same as those issued by public institutions.
  • ∗5. SI (Spectral Intensity) values corresponds to the destructive energy seismic motions exert on a structure.
  • ∗6. Information on UV Index is just for reference. And it may not be the same as that issued by public institutions.
